Axonometric Projection Parameters
by: Lazur URH

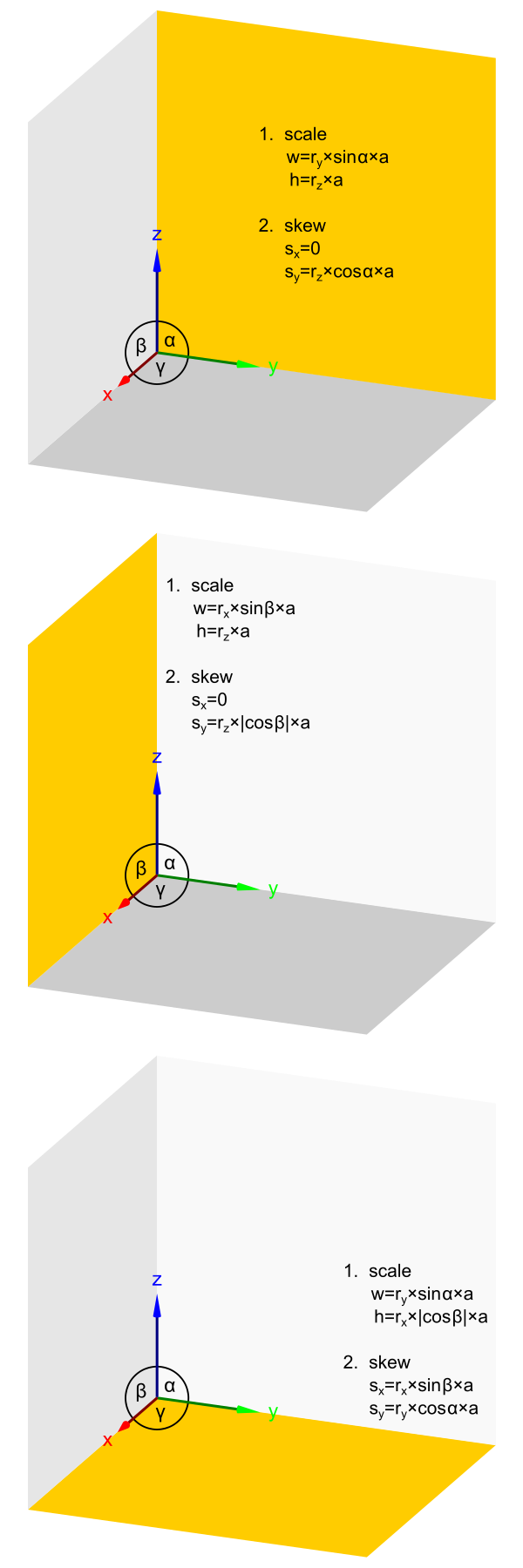

This displays a series of four images, each showing the transformation of a square with its side being "a" long. These transformations are used to accurately transform a design on the xy, xz, and yz base planes. This method is particularly useful for those who want to draw in axonometry or create accurate designs using Inkscape software. The images showcase how these transformations work by demonstrating the square's transformation into different shapes, such as a cube, a pyramid, and a cone. Overall, this image provides valuable information on how to use these transformations for designing and creating accurate 3D models in Inkscape.
